Flutter - Flutter渲染机制—GPU线程

基于Flutter 1.5，从源码视角来深入剖析flutter渲染机制，相关源码目录见文末附录

一、GPU线程渲染

看Flutter的渲染绘制过程的核心过程包括在ui线程和gpu线程，上一篇文章Flutter渲染机制—UI线程已经详细介绍了UI线程的工作原理，本文则介绍GPU线程的工作原理，这里需要注意的是，gpu线程是指运行着GPU Task Runner的名叫gpu的线程，其实依然是是在CPU上执行，用于将ui线程传递过来的layer tree转换为GPU命令并方法送到GPU，但这个执行过程会等待GPU的执行结果。

1.1 GPU渲染原理

1.1.1 GPU渲染概览

gpu线程的主要工作是将layer tree进行光栅化再发送给GPU，其中最为核心方法ScopedFrame::Raster()，其主要工作如下所示：

LayerTree::Preroll: 绘制前的一些准备工作
LayerTree::Paint: 此处会嵌套调用各个不同的layer的绘制方法
SkCanvas::Flush: 将数据flush到GPU，需要注意的是saveLayer的耗时；
AndroidContextGL::SwapBuffers: 缓存交换操作

1.1.2 生产者-消费者模式

当管道中待处理的光栅化任务等于2个的时候（池子满了），则UI线程无法执行Animator::BeginFrame()，而是等于下一次Vsync信号再尝试执行；
当管道中没有待处理的光栅化任务的时候（池子空了），则GPU线程无法执行Rasterizer::Draw()，而是直接返回，等待UI线程向其添加任务。

1）管道Pipeline中的信号量available_

在Animator初始化过程会设置初始值available_ = 0
UI线程执行ProducerCommit()，则available_加1
当available_ > 0，允许GPU线程来执行Consume()，则available_减1

2）管道Pipeline中的信号量empty_

在Animator初始化过程会设置初始值empty_ = 2
UI线程执行Produce()，生产layer tree交给GPU线程光栅化操作一次，则执行empty_.TryWait()，也就是empty_减1
GPU线程执行完成Consume()，则执行empty_.Signal()，也就是empty_加1；

1.1.3 Timeline说明

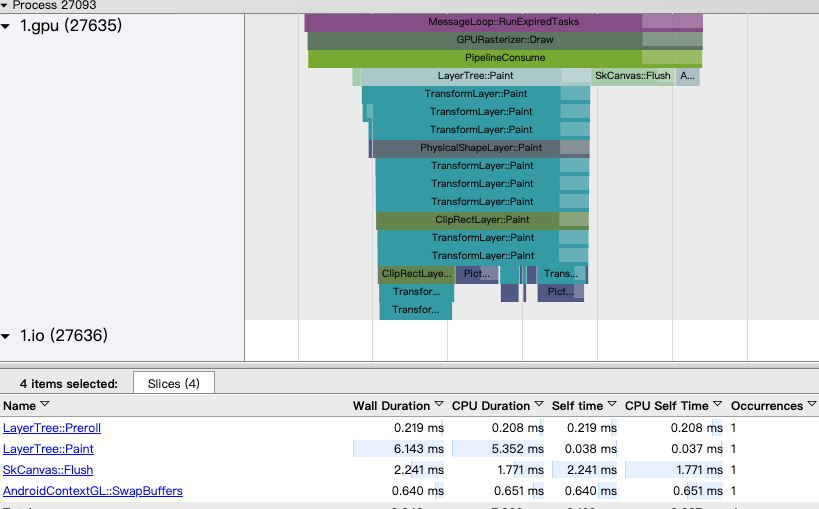

这几个过程是Timeline中ui线程的标签项，如图所示：

timeline_gpu_draw

UI线程是”PipelineProduce“，相对应的GPU线程则是”PipelineConsume“，贯穿整个Rasterizer::DoDraw()过程。

1.2 GPU线程绘制流程

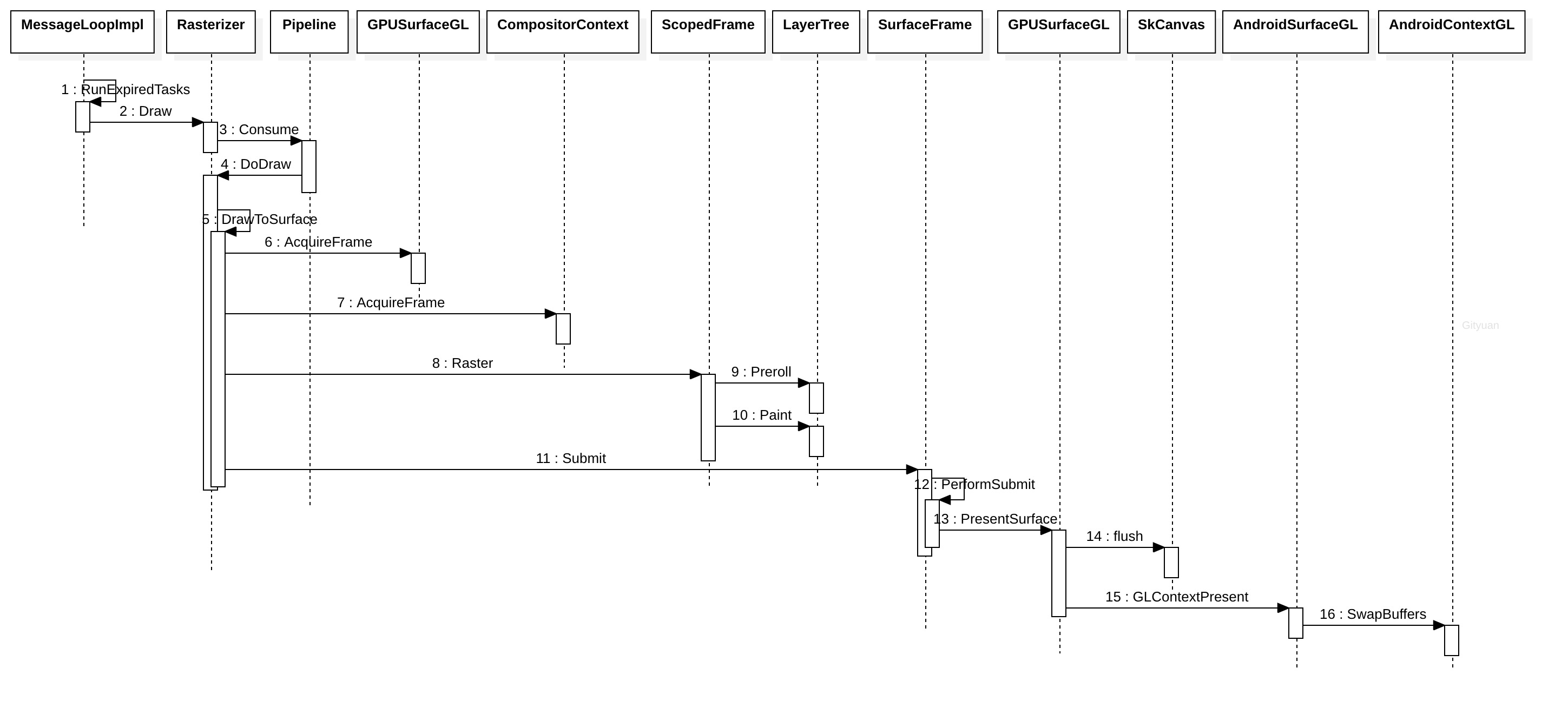

GPU线程处理流程图

GPUDraw

Flutter渲染机制在UI线程执行到compositeFrame()过程经过多层调用，将栅格化的任务Post到GPU线程来执行。GPU线程一旦空闲则会执行Rasterizer的draw()操作。图中LayerTree::Paint()过程是一个比较重要的操作，会嵌套调用不同layer的Paint过程，比如TransformLayer，PhysicalShapeLayer，ClipRectLayer，PictureLayer等都执行完成会执行flush()将数据发送给GPU。

1.3 核心类图

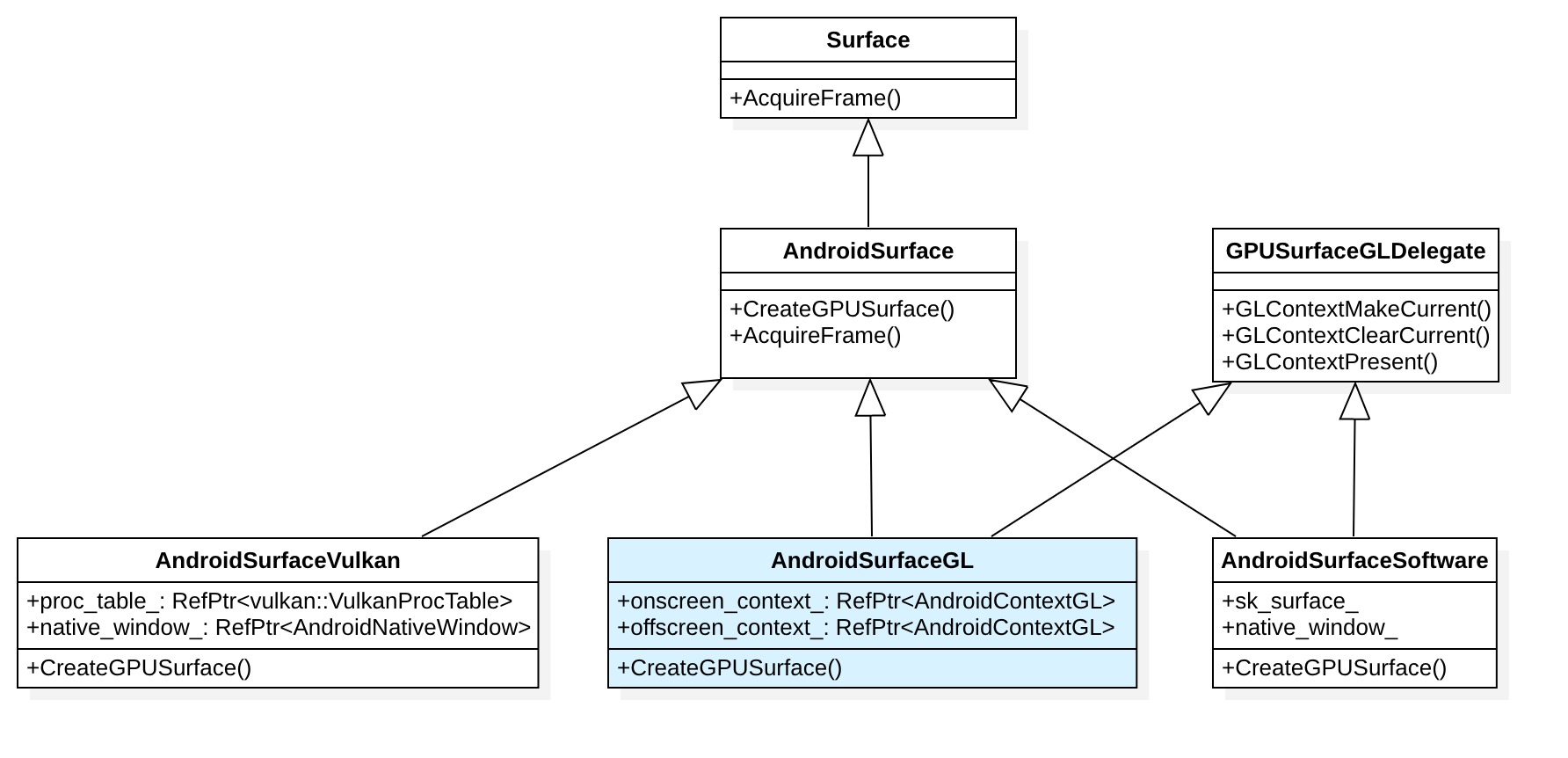

1.3.1 Surface类图

Surface类关系图

ClassSurface

三种不同的AndroidSurface，见小节2.6.3，说明如下：

硬件VSYNC方式，且开启VULKAN，则采用AndroidSurfaceVulkan，这是当前默认的方式；
硬件VSYNC方式，且未开启VULKAN，则采用AndroidSurfaceGL;
使用软件模拟的VSYNC方式，则采用AndroidSurfaceSoftware;

1.3.2 Layer类图

Layer类关系图

ClassLayer

LayerTree的root_layer来源于SceneBuilder过程初始化，第一个调用PushLayer()的layer便成为root_layer_，后面的调用会形成一个树状结构。从上图，可知ContainerLayer共有9个子类，由这些子类组合成为了一个layer tree，具体的组合方式取决于业务使用方，在LayerTree的Prepoll和Paint过程便会调用这些layer的方法，下面来看看这9个类：

ClipRectLayer：矩形裁剪层，可指定矩形和裁剪行为参数，其中裁剪行为有Clip.none，hardEdge，antiAlias，antiAliasWithSaveLayer四种行为；
ClipRRectLayer：圆角矩形裁剪层，可指定圆角矩形和裁剪行为参数，同上四种行为；
ClipPathLayer：路径裁剪层，可指定路径和裁剪行为参数，同上四种行为；
OpacityLayer：透明层，可指定透明度和偏移量参数，其中偏移量是指从画布坐标系原点到调用者坐标系原点的偏移量；
ShaderMaskLayer：着色层，可指定着色器、矩阵和混合模式参数；
ColorFilterLayer：颜色过滤层，可指定颜色和混合模式参数；
Transformayer：变换图层，可指定转换矩阵参数；
BackdropFilterLayer：背景过滤层，可指定背景图参数；
PhysicalShapeLayer：物理形状层，可指定颜色等八个参数。

二、源码解读GPU线程渲染

2.1 MessageLoopImpl::RunExpiredTasks

[-> flutter/fml/message_loop_impl.cc]

1void MessageLoopImpl::RunExpiredTasks() {
2  TRACE_EVENT0("fml", "MessageLoop::RunExpiredTasks");
3  std::vector<fml::closure> invocations;
4
5  {
6    std::lock_guard<std::mutex> lock(delayed_tasks_mutex_);
7    //当没有待处理的task则直接返回
8    if (delayed_tasks_.empty()) {
9      return;
10    }
11
12    auto now = fml::TimePoint::Now();
13    while (!delayed_tasks_.empty()) {
14      const auto& top = delayed_tasks_.top();
15      if (top.target_time > now) {
16        break;
17      }
18      invocations.emplace_back(std::move(top.task));
19      delayed_tasks_.pop();
20    }
21
22    WakeUp(delayed_tasks_.empty() ? fml::TimePoint::Max()
23                                  : delayed_tasks_.top().target_time);
24  }
25
26  for (const auto& invocation : invocations) {
27    invocation();  // [见小节2.2]
28    for (const auto& observer : task_observers_) {
29      observer.second();
30    }
31  }
32}

gpu线程是不断循环处理消息的过程。

2.1.1 Shell::OnAnimatorDraw

[-> flutter/shell/common/shell.cc]

1void Shell::OnAnimatorDraw(
2    fml::RefPtr<flutter::Pipeline<flow::LayerTree>> pipeline) {
3
4  //向GPU线程提交绘制任务
5  task_runners_.GetGPUTaskRunner()->PostTask(
6      [rasterizer = rasterizer_->GetWeakPtr(),
7       pipeline = std::move(pipeline)]() {
8        if (rasterizer) {
9          rasterizer->Draw(pipeline); //[见小节2.2]
10        }
11      });
12}

书接上文Flutter渲染机制—UI线程的[小节4.10.5]的Shell::OnAnimatorDraw()方法，向gpu线程post任务，交由gpu线程来处理。

2.2 Rasterizer::Draw

[-> flutter/shell/common/rasterizer.cc]

1void Rasterizer::Draw(
2    fml::RefPtr<flutter::Pipeline<flow::LayerTree>> pipeline) {
3  TRACE_EVENT0("flutter", "GPURasterizer::Draw");
4
5  flutter::Pipeline<flow::LayerTree>::Consumer consumer =
6      std::bind(&Rasterizer::DoDraw, this, std::placeholders::_1);
7
8  //消费pipeline的任务 [见小节2.3]
9  switch (pipeline->Consume(consumer)) {
10    case flutter::PipelineConsumeResult::MoreAvailable: {
11      task_runners_.GetGPUTaskRunner()->PostTask(
12          [weak_this = weak_factory_.GetWeakPtr(), pipeline]() {
13            if (weak_this) {
14              weak_this->Draw(pipeline);
15            }
16          });
17      break;
18    }
19    default:
20      break;
21  }
22}

执行完Consume()后返回值为PipelineConsumeResult::MoreAvailable，则说明还有任务需要处理，则再次执行不同LayerTree的Draw()过程。

2.3 Pipeline::Consume

[-> flutter/synchronization/pipeline.h]

1PipelineConsumeResult Consume(Consumer consumer) {
2  if (consumer == nullptr) {
3    return PipelineConsumeResult::NoneAvailable;
4  }
5
6  // 当ui线程生产了layer tree，则此处可消费
7  if (!available_.TryWait()) {
8    return PipelineConsumeResult::NoneAvailable;
9  }
10
11  ResourcePtr resource;
12  size_t trace_id = 0;
13  size_t items_count = 0;
14
15  {
16    std::lock_guard<std::mutex> lock(queue_mutex_);
17    //从队列中取出头部的资源
18    std::tie(resource, trace_id) = std::move(queue_.front());
19    queue_.pop();
20    items_count = queue_.size();
21  }
22
23  {
24    TRACE_EVENT0("flutter", "PipelineConsume");
25    consumer(std::move(resource));  //消费管道中的一项资源[见小节2.4]
26  }
27
28  //消费完成，则将消息量empty_执行加1操作
29  empty_.Signal();
30  TRACE_FLOW_END("flutter", "PipelineItem", trace_id);
31  return items_count > 0 ? PipelineConsumeResult::MoreAvailable
32                         : PipelineConsumeResult::Done;
33}

根据小节2.1，可知这里的consumer绑定的是Rasterizer::DoDraw()，接下里看看这个方法。

2.4 Rasterizer::DoDraw

[-> flutter/shell/common/rasterizer.cc]

1void Rasterizer::DoDraw(std::unique_ptr<flow::LayerTree> layer_tree) {
2  if (!layer_tree || !surface_) {
3    return;
4  }
5  //[见小节2.5]
6  if (DrawToSurface(*layer_tree)) {
7    //将layer tree记录到last_layer_tree_
8    last_layer_tree_ = std::move(layer_tree);
9  }
10}

2.5 Rasterizer::DrawToSurface

[-> flutter/shell/common/rasterizer.cc]

1 bool Rasterizer::DrawToSurface(flow::LayerTree& layer_tree) {
2  //此处的surface_为GPUSurfaceGL，得到的是SurfaceFrame [见小节2.6]
3  auto frame = surface_->AcquireFrame(layer_tree.frame_size());
4
5  if (frame == nullptr) {
6    return false;
7  }
8
9  //将ui线程生成layer tree所花费时间，记录到合成器上下文的engine_time里
10  compositor_context_->engine_time().SetLapTime(layer_tree.construction_time());
11  //获取SkCanvas指针
12  auto* canvas = frame->SkiaCanvas();
13
14  auto* external_view_embedder = surface_->GetExternalViewEmbedder();
15
16  if (external_view_embedder != nullptr) {
17    external_view_embedder->BeginFrame(layer_tree.frame_size());
18  }
19  //返回的是ScopedFrame，[见小节2.7]
20  auto compositor_frame = compositor_context_->AcquireFrame(
21      surface_->GetContext(), canvas, external_view_embedder,
22      surface_->GetRootTransformation(), true);
23
24  if (canvas) {
25    canvas->clear(SK_ColorTRANSPARENT);
26  }
27
28  // [见小节2.8]
29  if (compositor_frame && compositor_frame->Raster(layer_tree, false)) {
30     //[见小节2.9]
31    frame->Submit();
32    if (external_view_embedder != nullptr) {
33      external_view_embedder->SubmitFrame(surface_->GetContext());
34    }
35    FireNextFrameCallbackIfPresent();
36
37    if (surface_->GetContext())
38      surface_->GetContext()->performDeferredCleanup(kSkiaCleanupExpiration);
39
40    return true;
41  }
42
43  return false;
44}

该方法主要功能：

执行AndroidSurface的AcquireFrame()来获取SurfaceFrame，此处AndroidSurface为GPUSurfaceGL子类；
layer_tree.construction_time()记录ui线程生成layer tree所花费时间，将其记录到compositor_context_的engine_time，用于计算fps；
执行CompositorContext的AcquireFrame()来获取ScopedFrame；
执行ScopedFrame的Raster()进行绘制操作；
执行SurfaceFrame的Submit()来进行flush和SwapBuffers操作。

2.6 AndroidSurface::AcquireFrame

要知道surface_到底是怎么来的，先来看看AndroidSurface::Create()过程。

2.6.1 PlatformView::NotifyCreated

[-> flutter/shell/common/platform_view.h]

1void PlatformView::NotifyCreated() {
2    delegate_.OnPlatformViewCreated(CreateRenderingSurface()); //[见小节2.6.2]
3}

OnPlatformViewCreated()过程会通过rasterizer->Setup(std::move(surface))来初始化surface_变量，而surface_便是由CreateRenderingSurface()方法赋值初始化的，如下所示。

2.6.2 PlatformViewAndroid::CreateRenderingSurface

[-> flutter/shell/platform/android/platform_view_android.cc]

1std::unique_ptr<Surface> PlatformViewAndroid::CreateRenderingSurface() {
2  if (!android_surface_) {
3    return nullptr;
4  }
5  //[见小节2.6.3/ 2.6.4]
6  return android_surface_->CreateGPUSurface();
7}

这里有两点需要关注一下：

android_surface_变量：通过AndroidSurface::Create完成赋值初始化，返回的数据类型为AndroidSurfaceGL，见小节2.6.3；
CreateGPUSurface()：该方法返回的数据类型为GPUSurfaceGL，见小节2.6.4；

2.6.3 AndroidSurface::Create

[-> flutter/shell/platform/android/android_surface.cc]

1std::unique_ptr<AndroidSurface> AndroidSurface::Create(
2    bool use_software_rendering) {
3  if (use_software_rendering) {
4    auto software_surface = std::make_unique<AndroidSurfaceSoftware>();
5    return software_surface->IsValid() ? std::move(software_surface) : nullptr;
6  }
7#if SHELL_ENABLE_VULKAN
8  auto vulkan_surface = std::make_unique<AndroidSurfaceVulkan；>();
9  return vulkan_surface->IsValid() ? std::move(vulkan_surface) : nullptr;
10#else
11  auto gl_surface = std::make_unique<AndroidSurfaceGL>();
12  return gl_surface->IsOffscreenContextValid() ? std::move(gl_surface)
13                                               : nullptr;
14#endif
15}

三种不同的AndroidSurface，目前android_surface_默认数据类型为AndroidSurfaceGL。

2.6.4 AndroidSurfaceGL::CreateGPUSurface

[-> flutter/shell/platform/android/android_surface_gl.cc]

1std::unique_ptr<Surface> AndroidSurfaceGL::CreateGPUSurface() {
2  auto surface = std::make_unique<GPUSurfaceGL>(this);
3  return surface->IsValid() ? std::move(surface) : nullptr;
4}

可见surface_的类型为GPUSurfaceGL。再来看看看AcquireFrame()过程。

2.6.5 GPUSurfaceGL::AcquireFrame

[-> flutter/shell/gpu/gpu_surface_gl.cc]

1std::unique_ptr<SurfaceFrame> GPUSurfaceGL::AcquireFrame(const SkISize& size) {
2  ...
3  //此处delegate_是AndroidSurfaceGL，将其onscreen_context_设置为current
4  if (!delegate_->GLContextMakeCurrent()) {
5    return nullptr;
6  }
7
8  const auto root_surface_transformation = GetRootTransformation();
9
10  sk_sp<SkSurface> surface =
11      AcquireRenderSurface(size, root_surface_transformation);
12
13  if (surface == nullptr) {
14    return nullptr;
15  }
16
17  surface->getCanvas()->setMatrix(root_surface_transformation);
18
19  SurfaceFrame::SubmitCallback submit_callback =
20      [weak = weak_factory_.GetWeakPtr()](const SurfaceFrame& surface_frame,
21                                          SkCanvas* canvas) {
22        return weak ? weak->PresentSurface(canvas) : false;
23      };
24
25  //创建SurfaceFrame指针
26  return std::make_unique<SurfaceFrame>(surface, submit_callback);
27}

该过程会创建SurfaceFrame并设置SubmitCallback方法()。

2.7 CompositorContext::AcquireFrame

[-> flutter/flow/compositor_context.cc]

1std::unique_ptr<CompositorContext::ScopedFrame> CompositorContext::AcquireFrame(
2    GrContext* gr_context,
3    SkCanvas* canvas,
4    ExternalViewEmbedder* view_embedder,
5    const SkMatrix& root_surface_transformation,
6    bool instrumentation_enabled) {
7  //创建ScopedFrame指针
8  return std::make_unique<ScopedFrame>(*this, gr_context, canvas, view_embedder,
9                                       root_surface_transformation,
10                                       instrumentation_enabled);
11}

创建ScopedFrame，其成遍历context_记录着CompositorContext，而CompositorContext是在Rasterizer对象初始化的时候创建的。

2.8 ScopedFrame::Raster

[-> flutter/flow/compositor_context.cc]

1bool CompositorContext::ScopedFrame::Raster(flow::LayerTree& layer_tree,
2                                            bool ignore_raster_cache) {
3  layer_tree.Preroll(*this, ignore_raster_cache);
4  layer_tree.Paint(*this, ignore_raster_cache);
5  return true;
6}

从小节2.5可知ignore_raster_cache等于false，会采用raster缓存。

2.9 LayerTree::Preroll

[-> flutter/flow/layers/layer_tree.cc]

1void LayerTree::Preroll(CompositorContext::ScopedFrame& frame,
2                        bool ignore_raster_cache) {
3  TRACE_EVENT0("flutter", "LayerTree::Preroll");
4  SkColorSpace* color_space =
5      frame.canvas() ? frame.canvas()->imageInfo().colorSpace() : nullptr;
6  frame.context().raster_cache().SetCheckboardCacheImages(
7      checkerboard_raster_cache_images_);
8  PrerollContext context = {
9      //此处采用raster缓存
10      ignore_raster_cache ? nullptr : &frame.context().raster_cache(),
11      frame.gr_context(),
12      frame.view_embedder(),
13      color_space,
14      kGiantRect,
15      frame.context().frame_time(),
16      frame.context().engine_time(),
17      frame.context().texture_registry(),
18      checkerboard_offscreen_layers_};
19  //执行相应layer子类的preroll方法
20  root_layer_->Preroll(&context, frame.root_surface_transformation());
21}

该方法主要功能：

frame是由小节2.7过程赋值，其类型为ScopedFrame；
用于统计fps的frame_time和engine_time是来自于CompositorContext的成员；
从root_layer_记录图层树的根节点，根据根节点的具体ContainerLayer子类类型来执行相应类的Preroll方法()，这里以ContainerLayer为例子来说明。

2.9.1 ContainerLayer::Preroll

[-> flutter/flow/layers/container_layer.cc]

1void ContainerLayer::Preroll(PrerollContext* context, const SkMatrix& matrix) {
2  TRACE_EVENT0("flutter", "ContainerLayer::Preroll");
3
4  SkRect child_paint_bounds = SkRect::MakeEmpty();
5  //[见小节2.9.2]
6  PrerollChildren(context, matrix, &child_paint_bounds);
7  //设置绘制范围
8  set_paint_bounds(child_paint_bounds);
9}

该方法主要功能是遍历所有子图层，执行具体图层的Preroll()方法，并设置绘制范围。

2.9.2 ContainerLayer::PrerollChildren

[-> flutter/flow/layers/container_layer.cc]

1void ContainerLayer::PrerollChildren(PrerollContext* context,
2                                     const SkMatrix& child_matrix,
3                                     SkRect* child_paint_bounds) {
4  for (auto& layer : layers_) {
5    PrerollContext child_context = *context;
6    //遍历所有的图层，依次执行preroll
7    layer->Preroll(&child_context, child_matrix);
8    //根据需要设置是否需要合成
9    if (layer->needs_system_composite()) {
10      set_needs_system_composite(true);
11    }
12    child_paint_bounds->join(layer->paint_bounds());
13  }
14}

2.10 LayerTree::Paint

[-> flutter/flow/layers/layer_tree.cc]

1void LayerTree::Paint(CompositorContext::ScopedFrame& frame,
2                      bool ignore_raster_cache) const {
3  TRACE_EVENT0("flutter", "LayerTree::Paint");
4  SkISize canvas_size = frame.canvas()->getBaseLayerSize();
5  SkNWayCanvas internal_nodes_canvas(canvas_size.width(), canvas_size.height());
6  internal_nodes_canvas.addCanvas(frame.canvas());
7  if (frame.view_embedder() != nullptr) {
8    auto overlay_canvases = frame.view_embedder()->GetCurrentCanvases();
9    for (size_t i = 0; i < overlay_canvases.size(); i++) {
10      internal_nodes_canvas.addCanvas(overlay_canvases[i]);
11    }
12  }
13
14  Layer::PaintContext context = {
15      (SkCanvas*)&internal_nodes_canvas,
16      frame.canvas(),
17      frame.gr_context(),
18      frame.view_embedder(),
19      frame.context().frame_time(),
20      frame.context().engine_time(),
21      frame.context().texture_registry(),
22      ignore_raster_cache ? nullptr : &frame.context().raster_cache(),
23      checkerboard_offscreen_layers_};
24  //当paint_bounds_不为空则需要绘制
25  if (root_layer_->needs_painting())
26    root_layer_->Paint(context);
27}

paint_bounds_是在Preroll过程调用set_paint_bounds方法来赋值的，当paint_bounds_不为空则需要绘制。

对于Paint绘制过程，调用哪个方法取决于图层树结构中相应的layer类型，详见Layer类图。每个执行Paint()过程会再调用PaintChildren来遍历layers_的子图层，下面列举图上几个类的Paint绘制方法。

2.10.1 TransformLayer::Paint

[-> flutter/flow/layers/transform_layer.cc]

1void TransformLayer::Paint(PaintContext& context) const {
2  TRACE_EVENT0("flutter", "TransformLayer::Paint");
3  FML_DCHECK(needs_painting());
4
5  SkAutoCanvasRestore save(context.internal_nodes_canvas, true);
6  context.internal_nodes_canvas->concat(transform_);
7  PaintChildren(context);
8}

2.10.2 PhysicalShapeLayer::Paint

[-> flutter/flow/layers/physical_shape_layer.cc]

1void PhysicalShapeLayer::Paint(PaintContext& context) const {
2  TRACE_EVENT0("flutter", "PhysicalShapeLayer::Paint");
3  FML_DCHECK(needs_painting());
4
5  if (elevation_ != 0) {
6    DrawShadow(context.leaf_nodes_canvas, path_, shadow_color_, elevation_,
7               SkColorGetA(color_) != 0xff, device_pixel_ratio_);
8  }
9
10  SkPaint paint;
11  paint.setColor(color_);
12  if (clip_behavior_ != Clip::antiAliasWithSaveLayer) {
13    context.leaf_nodes_canvas->drawPath(path_, paint);
14  }
15
16  int saveCount = context.internal_nodes_canvas->save();
17  switch (clip_behavior_) {
18    case Clip::hardEdge:
19      context.internal_nodes_canvas->clipPath(path_, false);
20      break;
21    case Clip::antiAlias:
22      context.internal_nodes_canvas->clipPath(path_, true);
23      break;
24    case Clip::antiAliasWithSaveLayer:
25      context.internal_nodes_canvas->clipPath(path_, true);
26      context.internal_nodes_canvas->saveLayer(paint_bounds(), nullptr);
27      break;
28    case Clip::none:
29      break;
30  }
31
32  if (clip_behavior_ == Clip::antiAliasWithSaveLayer) {
33    context.leaf_nodes_canvas->drawPaint(paint);
34  }
35
36  PaintChildren(context);
37
38  context.internal_nodes_canvas->restoreToCount(saveCount);
39}

2.10.3 ClipRectLayer::Paint

[-> flutter/flow/layers/clip_rect_layer.cc]

1void ClipRectLayer::Paint(PaintContext& context) const {
2  TRACE_EVENT0("flutter", "ClipRectLayer::Paint");
3  FML_DCHECK(needs_painting());
4
5  SkAutoCanvasRestore save(context.internal_nodes_canvas, true);
6  context.internal_nodes_canvas->clipRect(paint_bounds(),
7                                          clip_behavior_ != Clip::hardEdge);
8  if (clip_behavior_ == Clip::antiAliasWithSaveLayer) {
9    context.internal_nodes_canvas->saveLayer(paint_bounds(), nullptr);
10  }
11  PaintChildren(context);
12  if (clip_behavior_ == Clip::antiAliasWithSaveLayer) {
13    context.internal_nodes_canvas->restore();
14  }
15}

2.10.4 PictureLayer::Paint

[-> flutter/flow/layers/picture_layer.cc]

1void PictureLayer::Paint(PaintContext& context) const {
2  TRACE_EVENT0("flutter", "PictureLayer::Paint");
3  FML_DCHECK(picture_.get());
4  FML_DCHECK(needs_painting());
5
6  SkAutoCanvasRestore save(context.leaf_nodes_canvas, true);
7  context.leaf_nodes_canvas->translate(offset_.x(), offset_.y());
8#ifndef SUPPORT_FRACTIONAL_TRANSLATION
9  context.leaf_nodes_canvas->setMatrix(RasterCache::GetIntegralTransCTM(
10      context.leaf_nodes_canvas->getTotalMatrix()));
11#endif
12
13  if (context.raster_cache) {
14    const SkMatrix& ctm = context.leaf_nodes_canvas->getTotalMatrix();
15    RasterCacheResult result = context.raster_cache->Get(*picture(), ctm);
16    if (result.is_valid()) {
17      result.draw(*context.leaf_nodes_canvas);
18      return;
19    }
20  }
21  context.leaf_nodes_canvas->drawPicture(picture());
22}

2.10.5 OpacityLayer::Paint

[-> flutter/flow/layers/opacity_layer.cc]

1void OpacityLayer::Paint(PaintContext& context) const {
2  TRACE_EVENT0("flutter", "OpacityLayer::Paint");
3
4  SkPaint paint;
5  paint.setAlpha(alpha_);
6
7  SkAutoCanvasRestore save(context.internal_nodes_canvas, true);
8  context.internal_nodes_canvas->translate(offset_.fX, offset_.fY);
9
10  if (context.view_embedder == nullptr && layers().size() == 1 &&
11      context.raster_cache) {
12    const SkMatrix& ctm = context.leaf_nodes_canvas->getTotalMatrix();
13    RasterCacheResult child_cache =
14        context.raster_cache->Get(layers()[0].get(), ctm);
15    if (child_cache.is_valid()) {
16      child_cache.draw(*context.leaf_nodes_canvas, &paint);
17      return;
18    }
19  }
20
21  SkRect saveLayerBounds;
22  paint_bounds()
23      .makeOffset(-offset_.fX, -offset_.fY)
24      .roundOut(&saveLayerBounds);
25
26  Layer::AutoSaveLayer save_layer =
27      Layer::AutoSaveLayer::Create(context, saveLayerBounds, &paint);
28  PaintChildren(context);
29}

2.11 SurfaceFrame::Submit

[-> flutter/shell/common/surface.cc]

1bool SurfaceFrame::Submit() {
2  if (submitted_) {
3    return false;
4  }
5  submitted_ = PerformSubmit(); //[见小节2.11.1]
6  return submitted_;
7}

再回到小节2.5，执行完Raster()后需要执行Submit()提交。

2.11.1 SurfaceFrame::PerformSubmit

[-> flutter/shell/common/surface.cc]

1bool SurfaceFrame::PerformSubmit() {
2  if (submit_callback_ == nullptr) {
3    return false;
4  }
5  //[见小节2.11.2]
6  if (submit_callback_(*this, SkiaCanvas())) {
7    return true;
8  }
9
10  return false;
11}

此处的submit_callback_是由[小节2.6.4]中赋值的，对应的方法是PresentSurface()

2.11.2 GPUSurfaceGL::PresentSurface

[-> flutter/shell/gpu/gpu_surface_gl.cc]

1bool GPUSurfaceGL::PresentSurface(SkCanvas* canvas) {
2  if (delegate_ == nullptr || canvas == nullptr || context_ == nullptr) {
3    return false;
4  }
5
6  if (offscreen_surface_ != nullptr) {
7    TRACE_EVENT0("flutter", "CopyTextureOnscreen");
8    SkPaint paint;
9    SkCanvas* onscreen_canvas = onscreen_surface_->getCanvas();
10    onscreen_canvas->clear(SK_ColorTRANSPARENT);
11    onscreen_canvas->drawImage(offscreen_surface_->makeImageSnapshot(), 0, 0,
12                               &paint);
13  }
14
15  {
16    TRACE_EVENT0("flutter", "SkCanvas::Flush");
17    //获取SkSurface的fCachedCanvas，再调用其flush()，[见小节2.12]
18    onscreen_surface_->getCanvas()->flush();
19  }
20
21  if (!delegate_->GLContextPresent()) { //[见小节2.13]
22    return false;
23  }
24
25  if (delegate_->GLContextFBOResetAfterPresent()) {
26    auto current_size =
27        SkISize::Make(onscreen_surface_->width(), onscreen_surface_->height());
28
29    auto new_onscreen_surface =
30        WrapOnscreenSurface(context_.get(),            // GL context
31                            current_size,              // root surface size
32                            delegate_->GLContextFBO()  // window FBO ID
33        );
34
35    if (!new_onscreen_surface) {
36      return false;
37    }
38    onscreen_surface_ = std::move(new_onscreen_surface);
39  }
40  return true;
41}

此处delegate_为AndroidSurfaceGL类型。

2.12 SkCanvas::flush

[-> third_party/skia/src/core/SkCanvas.cpp]

1void SkCanvas::flush() {
2    this->onFlush();
3}

2.12.1 SkCanvas::onFlush

[-> third_party/skia/src/core/SkCanvas.cpp]

1void SkCanvas::onFlush() {
2    SkBaseDevice* device = this->getDevice();
3    if (device) {
4        device->flush();
5    }
6}

2.13 AndroidSurfaceGL::GLContextPresent

[-> flutter/shell/platform/android/android_context_gl.cc]

1bool AndroidSurfaceGL::GLContextPresent() {
2  return onscreen_context_->SwapBuffers();
3}

2.13.1 AndroidContextGL::SwapBuffers

[-> flutter/shell/platform/android/android_context_gl.cc]

1bool AndroidContextGL::SwapBuffers() {
2  TRACE_EVENT0("flutter", "AndroidContextGL::SwapBuffers");
3  return eglSwapBuffers(environment_->Display(), surface_);
4}

附录

本文涉及到相关源码文件

1flutter/shell/common/
2    - shell.cc
3    - rasterizer.cc
4    - surface.cc
5    - platform_view.h
6
7flutter/shell/platform/android/
8    - platform_view_android.cc
9    - android_surface.cc
10    - android_surface_gl.cc
11    - android_context_gl.cc
12
13flutter/flow/layers/
14    - layer_tree.cc
15    - container_layer.cc
16    - transform_layer.cc
17    - physical_shape_layer.cc
18    - clip_rect_layer.cc
19    - picture_layer.cc
20
21flutter/fml/message_loop_impl.cc
22flutter/synchronization/pipeline.h
23flutter/flow/compositor_context.cc
24flutter/shell/gpu/gpu_surface_gl.cc
25third_party/skia/src/core/SkCanvas.cpp

本文转自 http://gityuan.com/2019/06/16/flutter_gpu_draw/，如有侵权，请联系删除。

Flutter - Flutter渲染机制—GPU线程

一、GPU线程渲染

1.1 GPU渲染原理

1.1.1 GPU渲染概览

1.1.2 生产者-消费者模式

1.1.3 Timeline说明

1.2 GPU线程绘制流程

1.3 核心类图

1.3.1 Surface类图

1.3.2 Layer类图

二、源码解读GPU线程渲染

2.1 MessageLoopImpl::RunExpiredTasks

2.1.1 Shell::OnAnimatorDraw

2.2 Rasterizer::Draw

2.3 Pipeline::Consume

2.4 Rasterizer::DoDraw

2.5 Rasterizer::DrawToSurface

2.6 AndroidSurface::AcquireFrame

2.6.1 PlatformView::NotifyCreated

2.6.2 PlatformViewAndroid::CreateRenderingSurface

2.6.3 AndroidSurface::Create

2.6.4 AndroidSurfaceGL::CreateGPUSurface

2.6.5 GPUSurfaceGL::AcquireFrame

2.7 CompositorContext::AcquireFrame

2.8 ScopedFrame::Raster

2.9 LayerTree::Preroll

2.9.1 ContainerLayer::Preroll

2.9.2 ContainerLayer::PrerollChildren

2.10 LayerTree::Paint

2.10.1 TransformLayer::Paint

2.10.2 PhysicalShapeLayer::Paint

2.10.3 ClipRectLayer::Paint

2.10.4 PictureLayer::Paint

2.10.5 OpacityLayer::Paint

2.11 SurfaceFrame::Submit

2.11.1 SurfaceFrame::PerformSubmit

2.11.2 GPUSurfaceGL::PresentSurface

2.12 SkCanvas::flush

2.12.1 SkCanvas::onFlush

2.13 AndroidSurfaceGL::GLContextPresent

2.13.1 AndroidContextGL::SwapBuffers

附录

评论区

相关推荐
