Flutter - 深入理解Flutter应用启动

基于Flutter 1.5，从源码视角来深入剖析flutter应用的启动流程，相关源码目录见文末附录

一、概述

上一篇文章深入理解Flutter引擎启动已经介绍了FlutterApplication和FlutterActivity的onCreate()方法执行过程，并触发Flutter引擎的启动，并最终执行到runApp(Widget app)方法，这才刚刚开始执行dart的业务代码，本文便从该方法讲起说一说flutter应用内逻辑的执行流程。

1.1 起点

1void main() => runApp(MyApp());
2
3class MyApp extends StatelessWidget {
4  @override
5  Widget build(BuildContext context) {
6    return MaterialApp(
7      title: 'Gityuan Flutter Demo',
8      theme: ThemeData(
9        primarySwatch: Colors.blue,
10      ),
11      home: GityuanHomePage(title: 'Gityuan Flutter Demo Home Page'),
12    );
13  }
14}

这是一段flutter app的demo代码，可见root widget就是MyApp对象。

1.2 启动流程图

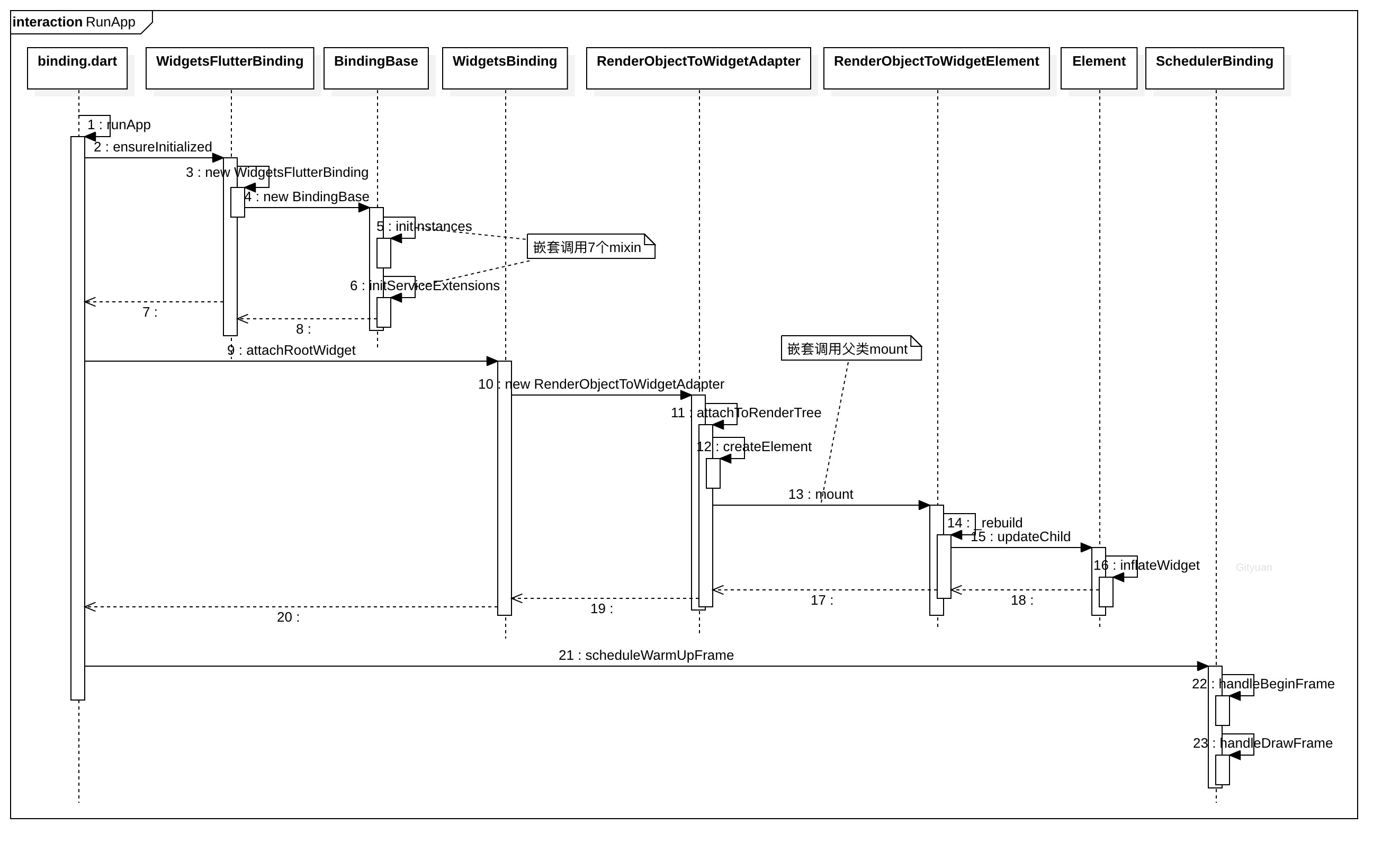

1) runApp启动流程图

RunApp

1.3 相关类图

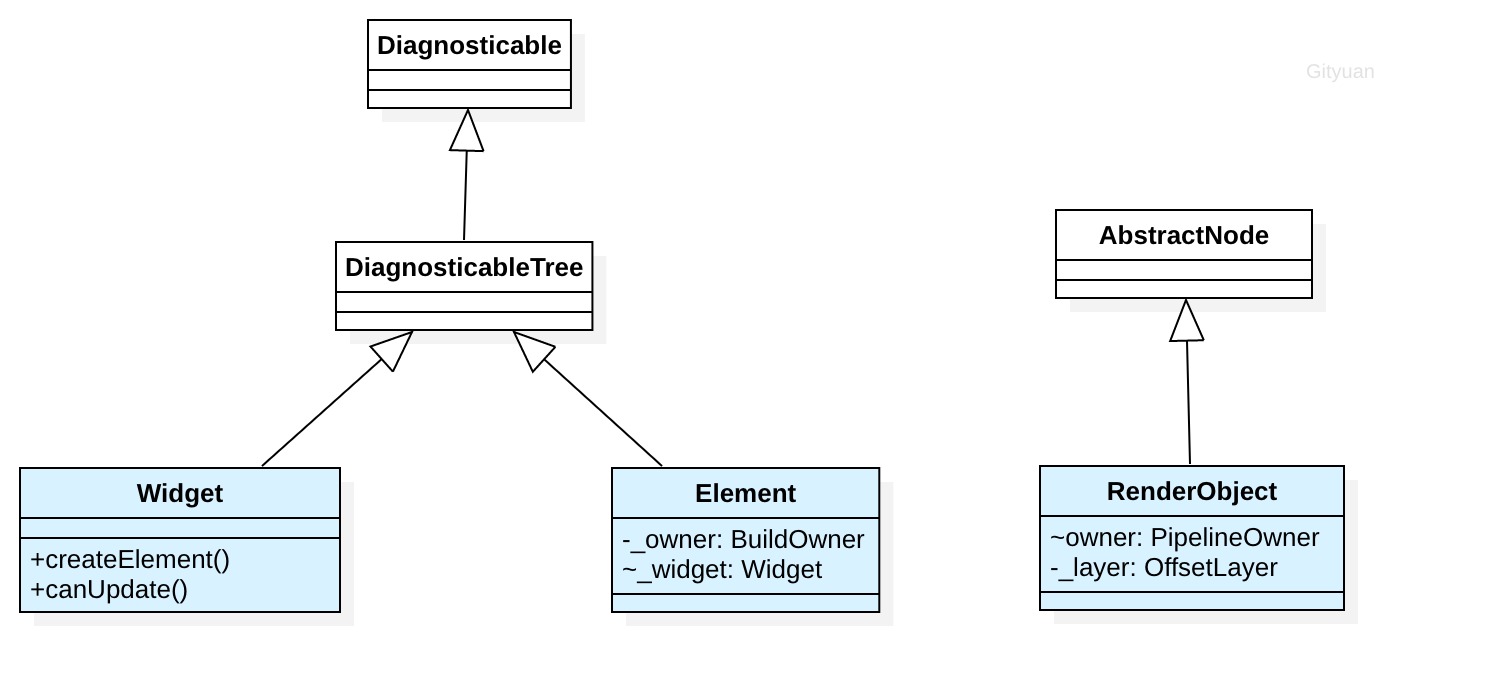

1) Widget/Element/RenderObject类图

ClassTree

Flutter中有3个比较重要的树Widget/Element/RenderObject，可以看出Widget/Element继承于共同的父类DiagnosticableTree，RenderObject继承于AbstractNode父类。这3颗树之间是什么关系，如何相互关联，接下来会详细展开，并在文末会有更详细的类关系图。

二、应用启动流程

2.1 runApp

[-> lib/src/widgets/binding.dart]

1void runApp(Widget app) {
2  WidgetsFlutterBinding.ensureInitialized()  //[见小节2.2]
3    ..attachRootWidget(app)   //[见小节2.4]
4    ..scheduleWarmUpFrame();  //[见小节2.7]
5}

2.2 ensureInitialized

[-> lib/src/widgets/binding.dart]

1class WidgetsFlutterBinding extends BindingBase with GestureBinding, ServicesBinding, SchedulerBinding, PaintingBinding, SemanticsBinding, RendererBinding, WidgetsBinding {
2
3  static WidgetsBinding ensureInitialized() {
4    if (WidgetsBinding.instance == null)
5      WidgetsFlutterBinding();  //首次初始化，先初始化父类BindingBase [小节2.2.1]
6    return WidgetsBinding.instance;
7  }
8}

WidgetsFlutterBinding这是一个单例模式，负责创建WidgetsFlutterBinding对象，WidgetsFlutterBinding继承抽象类BindingBase，并且附带7个mixin，对于mixin语法来说顺序是很重要，相同的方法会由后面的mixin覆盖前面的mixin方法，类关系图如下：

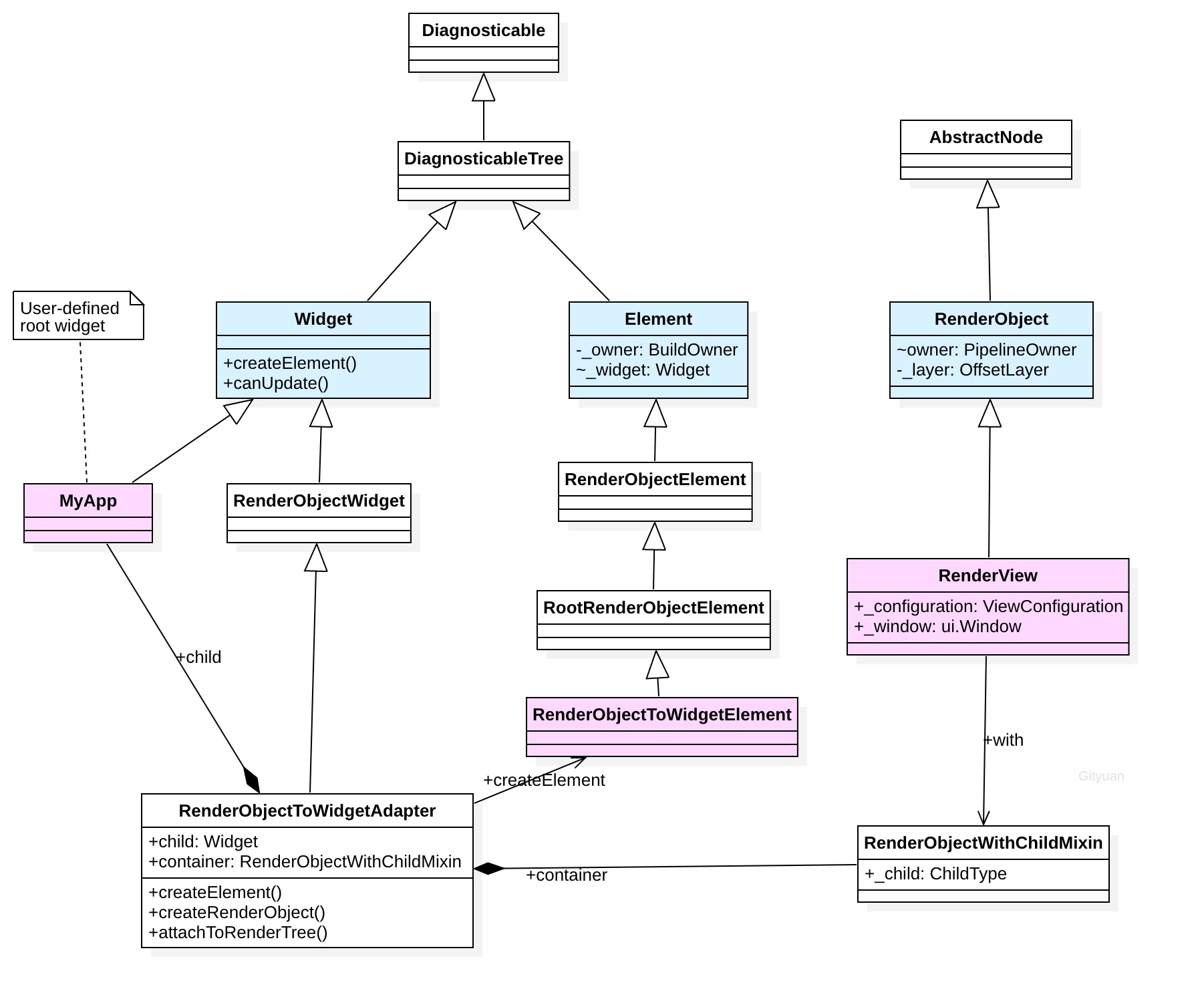

ClassBinding

图解：

BindingBase：抽象基类
WidgetsBinding：绑定组件树
RendererBinding：绑定渲染树
SemanticsBinding：绑定语义树
PaintingBinding：绑定绘制操作
SchedulerBinding：绑定帧绘制回调函数，以及widget生命周期相关事件
ServicesBinding：绑定平台服务消息，注册Dart层和C++层的消息传输服务；
GestureBinding：绑定手势事件，用于检测应用的各种手势相关操作；

2.2.1 BindingBase初始化

[-> lib/src/foundation/binding.dart]

1abstract class BindingBase {
2  BindingBase() {
3    developer.Timeline.startSync('Framework initialization');
4
5    initInstances();  //初始化状态 [见小节2.3]
6    initServiceExtensions(); //扩展调试相关服务
7
8    developer.postEvent('Flutter.FrameworkInitialization', <String, String>{});
9    developer.Timeline.finishSync();
10  }
11}

该方法的主要工作：

执行initInstances()方法会依次调用到每一下mixin来初始化一些状态；
执行initServiceExtensions方法会依次调用WidgetsBinding，RendererBinding，SchedulerBinding，ServicesBinding，BindingBase这5个类，主要是根据不同的包(release/profile/debug)调用registerServiceExtension()方法来注册各种扩展服务用于debug。

2.3 initInstances

mixin对于with的顺序有关，initInstances首先执行的便是最右边的WidgetsBinding类中的initInstances()方法，由于该方法都包含super.initInstances()，故会依次调用以下这些mixin的initInstances()方法进行初始化，调用栈如下图：

widget_binding_init

2.3.1 WidgetsBinding.initInstances

[-> lib/src/widgets/binding.dart]

1mixin WidgetsBinding on BindingBase, SchedulerBinding, GestureBinding, RendererBinding, SemanticsBinding {
2  final BuildOwner _buildOwner = BuildOwner();
3  Element _renderViewElement;
4
5  void initInstances() {
6    super.initInstances();
7    _instance = this;
8    buildOwner.onBuildScheduled = _handleBuildScheduled;
9    ui.window.onLocaleChanged = handleLocaleChanged;
10    ui.window.onAccessibilityFeaturesChanged = handleAccessibilityFeaturesChanged;
11    //处理导航的方法回调
12    SystemChannels.navigation.setMethodCallHandler(_handleNavigationInvocation);
13    //处理系统消息，比如内存紧张
14    SystemChannels.system.setMessageHandler(_handleSystemMessage);
15  }
16}

WidgetsBinding初始化过程会设置window的如下回调方法：

onLocaleChanged
onAccessibilityFeaturesChanged

2.3.2 RendererBinding.initInstances

[-> lib/src/rendering/binding.dart]

1mixin RendererBinding on BindingBase, ServicesBinding, SchedulerBinding, SemanticsBinding, HitTestable {
2  PipelineOwner _pipelineOwner;
3  RenderView get renderView => _pipelineOwner.rootNode;
4
5  void initInstances() {
6    super.initInstances();
7    _instance = this;
8    //创建PipelineOwner对象
9    _pipelineOwner = PipelineOwner(
10      onNeedVisualUpdate: ensureVisualUpdate,
11      onSemanticsOwnerCreated: _handleSemanticsOwnerCreated,
12      onSemanticsOwnerDisposed: _handleSemanticsOwnerDisposed,
13    );
14    ui.window
15      ..onMetricsChanged = handleMetricsChanged
16      ..onTextScaleFactorChanged = handleTextScaleFactorChanged
17      ..onSemanticsEnabledChanged = _handleSemanticsEnabledChanged
18      ..onSemanticsAction = _handleSemanticsAction;
19    initRenderView();  //初始化RenderView，见下文
20    _handleSemanticsEnabledChanged();
21    addPersistentFrameCallback(_handlePersistentFrameCallback);
22  }
23}

RendererBinding初始化过程，创建PipelineOwner、RenderView对象以及设置window的如下回调方法：

onMetricsChanged
onTextScaleFactorChanged
onSemanticsEnabledChanged
onSemanticsAction

1void initRenderView() {
2  renderView = RenderView(configuration: createViewConfiguration(), window: window);
3  renderView.scheduleInitialFrame(); //初始化首帧
4}
5
6set renderView(RenderView value) {
7  _pipelineOwner.rootNode = value;
8}

创建对象RenderView，并保持到_pipelineOwner.rootNode里面，可通过RendererBinding.renderView获取。

2.3.3 SemanticsBinding

[-> lib/src/semantics/binding.dart]

1mixin SemanticsBinding on BindingBase {
2  static SemanticsBinding _instance;
3
4  void initInstances() {
5    super.initInstances();
6    _instance = this;
7    _accessibilityFeatures = window.accessibilityFeatures;
8  }
9}

2.3.4 PaintingBinding

[-> lib/src/painting/binding.dart]

1mixin PaintingBinding on BindingBase, ServicesBinding {
2  static ShaderWarmUp shaderWarmUp = const DefaultShaderWarmUp();
3
4  void initInstances() {
5    super.initInstances();
6    _instance = this;
7    _imageCache = createImageCache(); //创建image缓存
8    if (shaderWarmUp != null) {
9      shaderWarmUp.execute();
10    }
11  }
12}

该过程会创建image缓存。

2.3.5 SchedulerBinding

[-> lib/src/scheduler/binding.dart]

1mixin SchedulerBinding on BindingBase, ServicesBinding {
2  void initInstances() {
3    super.initInstances();
4    _instance = this;
5    window.onBeginFrame = _handleBeginFrame;
6    window.onDrawFrame = _handleDrawFrame;
7    SystemChannels.lifecycle.setMessageHandler(_handleLifecycleMessage);
8    readInitialLifecycleStateFromNativeWindow();
9  }
10}

SchedulerBinding初始化过程，设置生命周期回调以及设置window的如下回调方法：

onMetricsChanged
onBeginFrame
onDrawFrame

2.3.6 ServicesBinding

[-> lib/src/services/binding.dart]

1mixin ServicesBinding on BindingBase {
2  void initInstances() {
3    super.initInstances();
4    _instance = this;
5    window
6      ..onPlatformMessage = BinaryMessages.handlePlatformMessage;
7    initLicenses();
8  }
9}

ServicesBinding初始化过程，window的如下回调方法：

onPlatformMessage

2.3.7 GestureBinding

[-> lib/src/gestures/binding.dart]

1mixin GestureBinding on BindingBase implements HitTestable, HitTestDispatcher, HitTestTarget {
2  void initInstances() {
3    super.initInstances();  //这里调用到BindingBase类，该类是个空方法
4    _instance = this;
5    window.onPointerDataPacket = _handlePointerDataPacket;
6  }

GestureBinding初始化过程，window的如下回调方法：

onPointerDataPacket

创建完WidgetsBinding，接下来执行其attachRootWidget()方法

2.4 WidgetsBinding.attachRootWidget

[-> lib/src/widgets/binding.dart]

1mixin WidgetsBinding on BindingBase, SchedulerBinding, GestureBinding, RendererBinding, SemanticsBinding {
2    Element get renderViewElement => _renderViewElement;
3    Element _renderViewElement;
4
5    void attachRootWidget(Widget rootWidget) {
6      //创建桥接对象[见小节2.4.1]
7      _renderViewElement = RenderObjectToWidgetAdapter<RenderBox>(
8        container: renderView,
9        debugShortDescription: '[root]',
10        child: rootWidget
11      ).attachToRenderTree(buildOwner, renderViewElement); //[见小节2.5]
12    }
13}

该方法所涉及的变量：

rootWidget: 是指flutter应用自定义的根Widget，由开发者自定义；
renderView: 指由RendererBinding初始化过程创建的RenderView(该类继承于RenderObject)，见小节[2.3.2];
_renderViewElement: 是由attachToRenderTree()执行后的返回值，类型为Element子类；

可通过WidgetsBinding的renderViewElement来获取创建的RenderObjectToWidgetElement对象。

2.4.1 RenderObjectToWidgetAdapter

[-> lib/src/widgets/binding.dart]

1class RenderObjectToWidgetAdapter<T extends RenderObject> extends RenderObjectWidget {
2  final Widget child;
3  final RenderObjectWithChildMixin<T> container;
4  final String debugShortDescription;   //用于调试：简短描述该widget
5
6  RenderObjectToWidgetAdapter({
7    this.child,
8    this.container,
9    this.debugShortDescription,
10  }) : super(key: GlobalObjectKey(container));
11}

RenderObjectToWidgetAdapter是从[RenderObject]到[Element]树的一个桥接对象，该类的核心方法有：

createElement：返回的是RenderObjectToWidgetElement类型；
createRenderObject：返回的便是这个container，也就是renderView；

2.5 attachToRenderTree

[-> lib/src/widgets/binding.dart ::RenderObjectToWidgetAdapter]

1class RenderObjectToWidgetAdapter<T extends RenderObject> extends RenderObjectWidget {
2
3  RenderObjectToWidgetElement<T> createElement() => RenderObjectToWidgetElement<T>(this);
4
5  RenderObjectToWidgetElement<T> attachToRenderTree(BuildOwner owner, [RenderObjectToWidgetElement<T> element]) {
6    if (element == null) {
7      owner.lockState(() {
8        element = createElement(); //创建Element对象，见小节2.5.1
9        element.assignOwner(owner); //将owner赋值给element成员_owner
10      });
11      owner.buildScope(element, () {  //执行build过程，见小节2.5.2
12        element.mount(null, null);
13    } else {
14      element._newWidget = this;
15      element.markNeedsBuild();
16    }
17    return element;
18  }
19
20}

首次调用attachToRenderTree时，element为空则会创建RenderObjectToWidgetElement对象，如果再次调用则会复用已创建的element对象。

2.5.1 createElement

[-> lib/src/widgets/binding.dart ::RenderObjectToWidgetAdapter]

RenderObjectToWidgetElement<T> createElement() => RenderObjectToWidgetElement<T>(this);

此处this便是RenderObjectToWidgetAdapter对象，该过程会将RenderObjectToWidgetAdapter保存在父类Element的widget成员变量中。

2.5.2 BuildOwner.buildScope

[-> lib/src/widgets/framework.dart]

1void buildScope(Element context, [VoidCallback callback]) {
2  if (callback == null && _dirtyElements.isEmpty)
3    return;
4  Timeline.startSync('Build', arguments: timelineWhitelistArguments);
5  try {
6    if (callback != null) {
7      _dirtyElementsNeedsResorting = false;
8      callback();  //此处回调为mount() ，见小节2.5.3
9    }
10    ...
11    _dirtyElements.sort(Element._sort);
12    int dirtyCount = _dirtyElements.length;
13    while (index < dirtyCount) {
14        _dirtyElements[index].rebuild(); //针对脏元素执行rebuild操作
15        ...
16    }
17  } finally {
18    ...
19    Timeline.finishSync();
20  }
21}

2.5.3 RenderObjectToWidgetElement.mount

[-> lib/src/widgets/binding.dart]

1void mount(Element parent, dynamic newSlot) {
2  super.mount(parent, newSlot);  //[见小节2.5.4]
3  _rebuild(); //[见小节2.6]
4}

2.5.4 RenderObjectElement.mount

[-> lib/src/widgets/framework.dart]

1abstract class RenderObjectElement extends Element {
2
3    void mount(Element parent, dynamic newSlot) {
4      super.mount(parent, newSlot);  //[见小节2.5.5]
5      _renderObject = widget.createRenderObject(this);
6      attachRenderObject(newSlot); //将newSlot依附到RenderObject上
7      _dirty = false;
8    }
9}

此处的widget是RenderObjectToWidgetAdapter对象，那么_renderObject返回的便是renderView对象；

2.5.5 Element.mount

[-> lib/src/widgets/framework.dart]

1abstract class Element extends DiagnosticableTree implements BuildContext {
2    void mount(Element parent, dynamic newSlot) {
3      _parent = parent;
4      _slot = newSlot;
5      _depth = _parent != null ? _parent.depth + 1 : 1;
6      _active = true;
7      if (parent != null)
8        _owner = parent.owner;
9      if (widget.key is GlobalKey) {
10        final GlobalKey key = widget.key;
11        key._register(this); //注册并建立globalKey和Element的关联
12      }
13      _updateInheritance();
14    }
15}

在前面小节[2.5.3]在执行完mount操作后，便会开始执行下面的_rebuild()方法。

2.6 RenderObjectToWidgetElement._rebuild

[-> lib/src/widgets/binding.dart]

1void _rebuild() {
2  try {
3    //[见小节2.6.1]
4    _child = updateChild(_child, widget.child, _rootChildSlot);
5  } catch (exception, stack) {
6    ...
7  }
8}

2.6.1 Element.updateChild

[-> lib/src/widgets/framework.dart]

1Element updateChild(Element child, Widget newWidget, dynamic newSlot) {
2  if (newWidget == null) {
3    if (child != null)
4      deactivateChild(child); //移除旧的子元素
5    return null;
6  }
7  if (child != null) {
8    if (child.widget == newWidget) {
9      if (child.slot != newSlot)
10        updateSlotForChild(child, newSlot); //更新子元素在父级所用的slot
11      return child;
12    }
13    if (Widget.canUpdate(child.widget, newWidget)) {
14      if (child.slot != newSlot)
15        updateSlotForChild(child, newSlot);
16      child.update(newWidget);
17      return child;
18    }
19    deactivateChild(child);
20  }
21  return inflateWidget(newWidget, newSlot); //为给定的widget创建新Element [见小节2.6.2]
22}

2.6.2 Element.inflateWidget

[-> lib/src/widgets/framework.dart]

1Element inflateWidget(Widget newWidget, dynamic newSlot) {
2  final Key key = newWidget.key;
3  if (key is GlobalKey) {
4    //从_inactiveElements中查找是否有可复用的Element
5    final Element newChild = _retakeInactiveElement(key, newWidget);
6    if (newChild != null) {
7      newChild._activateWithParent(this, newSlot);
8      //找到可复用Element，则从相应列表移除，并更新子视图
9      final Element updatedChild = updateChild(newChild, newWidget, newSlot);
10      return updatedChild;
11    }
12  }
13  //否则创建新的Element
14  final Element newChild = newWidget.createElement();
15  newChild.mount(this, newSlot);
16  return newChild;
17}

2.7 SchedulerBinding.scheduleWarmUpFrame

[-> lib/src/scheduler/binding.dart]

1void scheduleWarmUpFrame() {
2  // _warmUpFrame用于保证不会再没有绘制完成的情况下，再次回调绘制方法
3  if (_warmUpFrame || schedulerPhase != SchedulerPhase.idle)
4    return;
5
6  _warmUpFrame = true;
7  Timeline.startSync('Warm-up frame');
8  final bool hadScheduledFrame = _hasScheduledFrame;
9  Timer.run(() {
10    //使用定时器执行帧准备绘制的方法
11    handleBeginFrame(null);
12  });
13  Timer.run(() {
14    //使用定时器执行帧绘制的方法
15    handleDrawFrame();
16    //这帧结束后重置时间
17    resetEpoch();
18    _warmUpFrame = false;
19    if (hadScheduledFrame)
20      scheduleFrame();
21  });
22
23  lockEvents(() async {
24    await endOfFrame;
25    Timeline.finishSync();
26  });
27}

预热帧结束后调用resetEpoch，以便在热重载情况下，下一帧假装在预热帧之后立刻发生。由于预热帧的时间戳通常会在过去(最后一个真实帧的时间)，如果不重置时间，则会出现从预热帧中的旧时间突然跳转到 “真实”框架中的新时间。最大的问题就是隐式动画最终会在过去被触发，然后跳过每一帧并在新时间结束，从而出现帧跳跃的情况。

另外关于handleBeginFrame和handleDrawFrame的渲染绘制过程，见文章Flutter渲染机制—UI线程中的第四Framework层处理流程部分。

三、小结

runApp(MyApp)是flutter应用开始真正执行业务逻辑代码的起点，整个过程主要工作：

WidgetsFlutterBinding初始化：这是一个单例模式，负责创建WidgetsFlutterBinding对象，WidgetsFlutterBinding继承抽象类BindingBase，并且附带7个mixin，初始化渲染、语义化、绘制、平台消息以及手势等一系列操作；
attachRootWidget：遍历挂载整个视图树，并建立Widget、Element、RenderObject之间的连接与关系，此处Element的具体类型为RenderObjectToWidgetElement；
scheduleWarmUpFrame：调度预热帧，执行帧绘制方法handleBeginFrame和handleDrawFrame。

Widget/Element/RenderObject类图

ClassTreeDet

从WidgetsFlutterBinding是单例模式，从小节[2.4]得WidgetsBinding的renderViewElement记录着唯一的RenderObjectToWidgetElement对象，从小节[2.3.2]可知RendererBinding的renderView记录着唯一的RenderView对象；也就是说每个flutter应用创建的Root Widget跟Element、RenderObject一一对应，且单例唯一。

MyApp是用户定义的根Widget，为了建立三棵树的关系，RenderObjectToWidgetAdapter起到重要的桥接功能，该类的createElement方法创建RenderObjectToWidgetElement对象，createRenderObject()方法获取的是RenderView。

微信公众号 Gityuan | 微博 weibo.com/gityuan | 博客 留言区交流

本文转自 http://gityuan.com/2019/06/29/flutter_run_app/，如有侵权，请联系删除。

Flutter - 深入理解Flutter应用启动

一、概述

1.1 起点

1.2 启动流程图

1.3 相关类图

二、应用启动流程

2.1 runApp

2.2 ensureInitialized

2.2.1 BindingBase初始化

2.3 initInstances

2.3.1 WidgetsBinding.initInstances

2.3.2 RendererBinding.initInstances

2.3.3 SemanticsBinding

2.3.4 PaintingBinding

2.3.5 SchedulerBinding

2.3.6 ServicesBinding

2.3.7 GestureBinding

2.4 WidgetsBinding.attachRootWidget

2.4.1 RenderObjectToWidgetAdapter

2.5 attachToRenderTree

2.5.1 createElement

2.5.2 BuildOwner.buildScope

2.5.3 RenderObjectToWidgetElement.mount

2.5.4 RenderObjectElement.mount

2.5.5 Element.mount

2.6 RenderObjectToWidgetElement._rebuild

2.6.1 Element.updateChild

2.6.2 Element.inflateWidget

2.7 SchedulerBinding.scheduleWarmUpFrame

三、小结

评论区

相关推荐
